Ringschrauben INOX
AISI 316

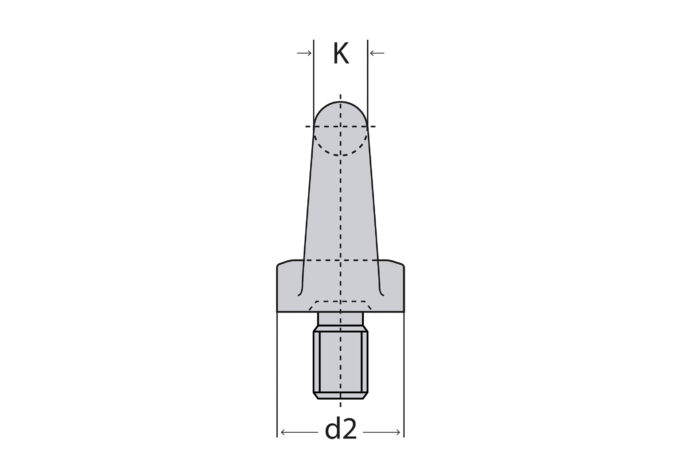

Abmessungen gemäss Grafik
| Artikelnummer | Zulässige Belastung | Nenngrösse a = M | d1 | d2 | d3 | d4 | b | c | Gewicht / 100 Stück |
| 5142-06011-00-7 | 70 daN | M 6 | 27 mm | 15 mm | 15 mm | 6 mm | 27 mm | 11 mm | 1.9 kg |
| 5142-08013-00-7 | 140 daN | M 8 | 36 mm | 20 mm | 20 mm | 8 mm | 36 mm | 13 mm | 4.5 kg |
| 5142-10017-00-7 | 230 daN | M 10 | 45 mm | 25 mm | 25 mm | 10 mm | 45 mm | 17 mm | 9.1 kg |
| 5142-12020-00-7 | 340 daN | M 12 | 54 mm | 30 mm | 30 mm | 12 mm | 53 mm | 20 mm | 15.2 kg |
| 5142-16027-00-7 | 700 daN | M 16 | 63 mm | 35 mm | 35 mm | 14 mm | 62 mm | 27 mm | 25.9 kg |
| 5142-20030-00-7 | 1200 daN | M 20 | 72 mm | 40 mm | 40 mm | 16 mm | 71 mm | 30 mm | 38.7 kg |
| 5142-24036-00-7 | 1800 daN | M 24 | 90 mm | 50 mm | 50 mm | 20 mm | 90 mm | 36 mm | 76.1 kg |
